[GreenKeys] Help with No Print Bracket

[carcher at ourlink.net]

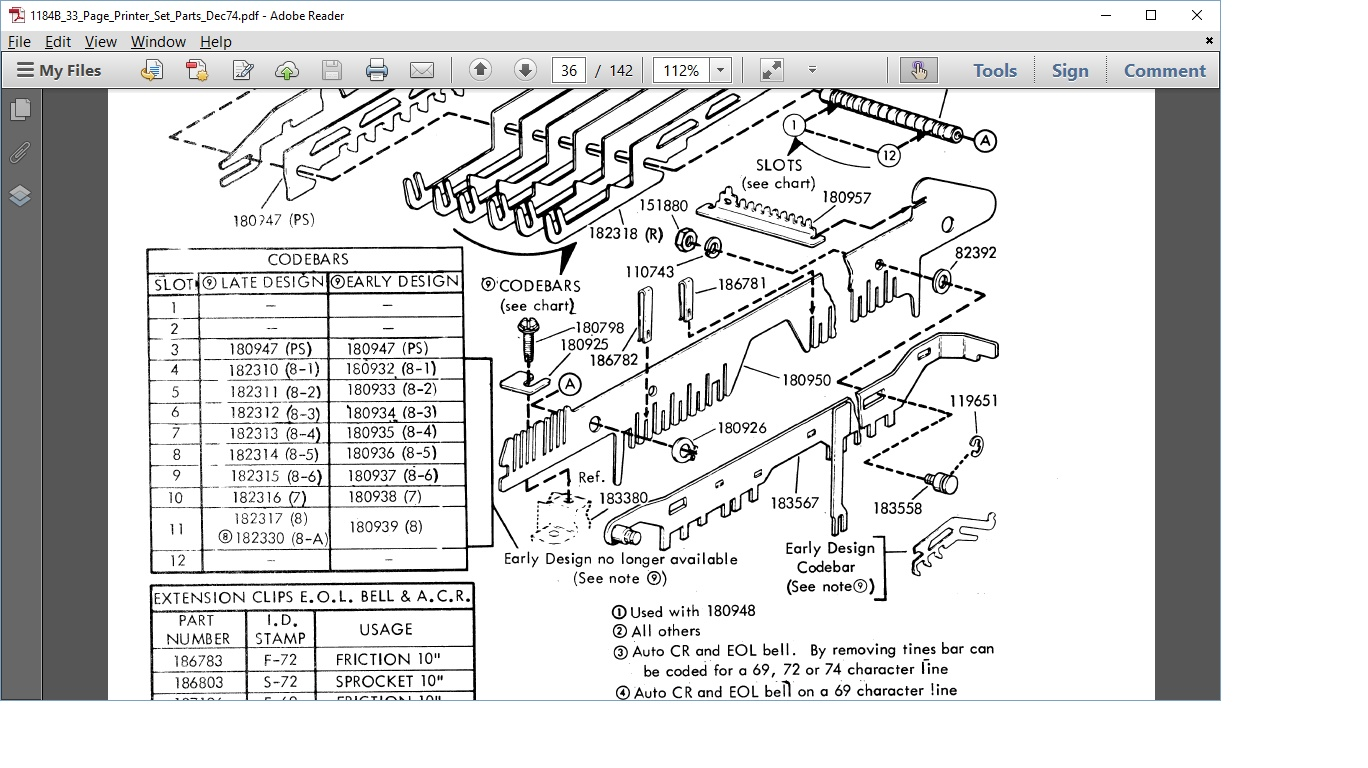

The official part is 183567 which was driven by a solenoid that had a
local switch control, or optionally could be toggled by received codes.
  This part will stop all carriage and paper feed movement and disables
most of the code bars so the bell and answerback won't be decoded while
the tape is punching.

If your 33 decodes ctrl-T and ctrl-R you would have the extra code bars
and a slide switch behind the platen next to the bell.  You would
probably also have reader control with an extra relay on the power
supply inside the stand.

Get a copy of the manuals from bitsavers.org if you don't have any.

Clay

On 2016-11-18 16:03, Jbensadon wrote:

> I have  a later model ASR33, I am wondering about 2 things.
>
> When I send a file to the unit for punching, I want to suppress the printing of the data.
>
> Next, I found that codes 0x14 and 0x12, stop and start the punch (<Ctrl>-T and <Ctrl>-R).
>
> How do I punch these codes on tape without stopping the punch? Is there an escape sequence?
>
> Or is this ASR just not meant to punch binary codes?
>
> Help?
>
